Our biggest machine. Your boldest move.
Maximum Power. Minimum Noise.
With a 43.2 kWh battery, 29.5 HP of electric power, and the reach and breakout force you’d expect from a top-tier machine in its class, the SL3800 proves that going electric doesn’t mean giving up performance.
You’re looking at a full-scale, pro-duty excavator—minus the diesel, the smoke, the fuel costs, and the downtime.
No fumes. No Compromises.
Finance with Lease Link.
SL3800
Dimensions
Weight: 8378 lbs/3800 kg
Total Length: 16ft 1in
Total Width: 5ft 8 1/2in
Total Height: 8ft 4 1/2in
Track Length: 7ft 1in
Track Width: 5ft 8 1/2in
Shoe Width: 1ft
Track Gauge: 4ft 8 3/4in
Ground Contact Length (Transportation): 11ft
Crawler Wheelbase: 5ft 5 3/4in
Bonnet Height: 5ft 1in
Revolving Frame Width: 5ft 1in
Distance From Swivel Center to Tail: 2ft 9 3/4in
Zero Tail Swing
Battery
Battery: 72V 600Ah/43.2 kWh lithium battery
Motor: 29.5 HP (2 kW) @ 2200–2500 rpm
Charging: 12 hrs on 120V/6 hrs on 240 V
Working Hours: 4 hours
Options
ARCTIC Model
Cab Features
Enclosed w/ Air Conditioning
Radio
USB
Bluetooth
Specs
Max. Dig Height: 16ft 1 1/4in
Max. Dump Height: 11ft 7 1/2in
Max. Dig Depth: 10ft 1in
Max. Vertical Dig Depth: 8ft 8in
Max. Dig Distance: 18ft 1/2in
Max. Dig Radius: 17ft 6 1/2in
Max. Dozer Blade Height: 1ft 3in
Max. Dozer Blade Cutting Depth: 1ft 2 1/2in
Tail Swing Radius: 2ft 9 3/4in
Gradeability: ≤30°
Swing Speed: 9 rpm
Travel Speed: 2.4–4.4km/h (H/L)
Ground Clearance: 11 5/8in
Counterweight Ground Clearance: 1ft 11 1/2in
Hydraulic System Capacity: 40 L (10.6 gallons)
Hydraulic Flow: 86.4 L/min
Warranty
Battery: 3 years
Boom, Stick/Arm, Track Frame, Turntable: 2 years
Pump, Motor, all other major parts and components: 1 year
Accessories: 1 year
Order your custom SL3800 today!
Submit your order, and our sales team will be in touch soon to confirm details and get you started!

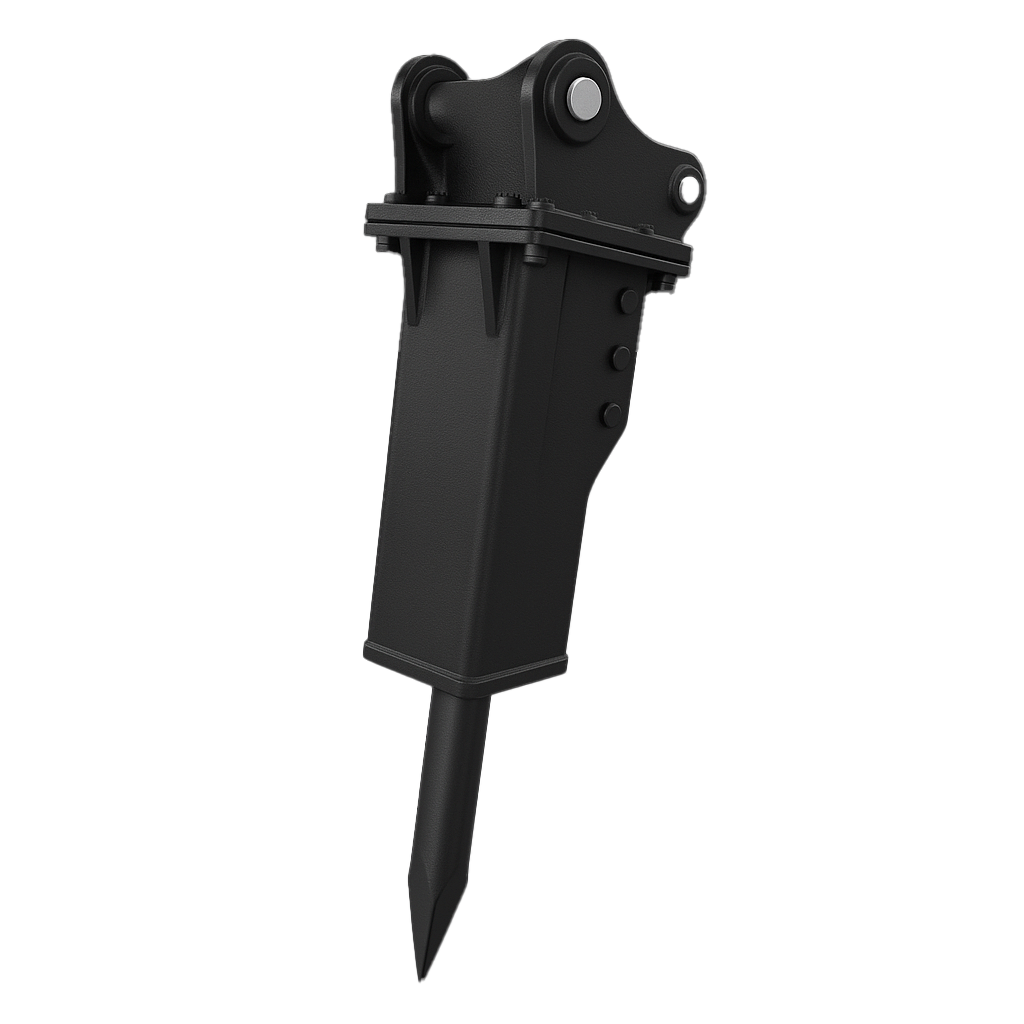

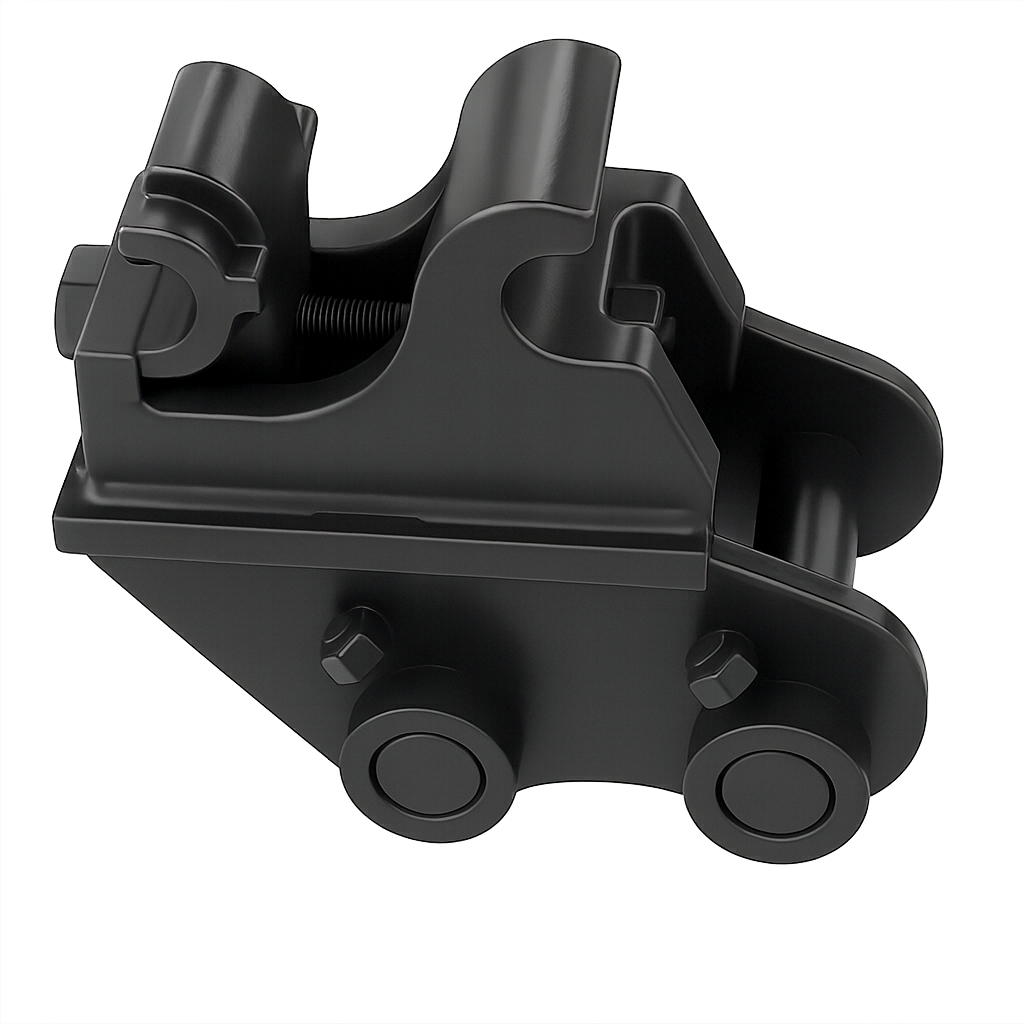

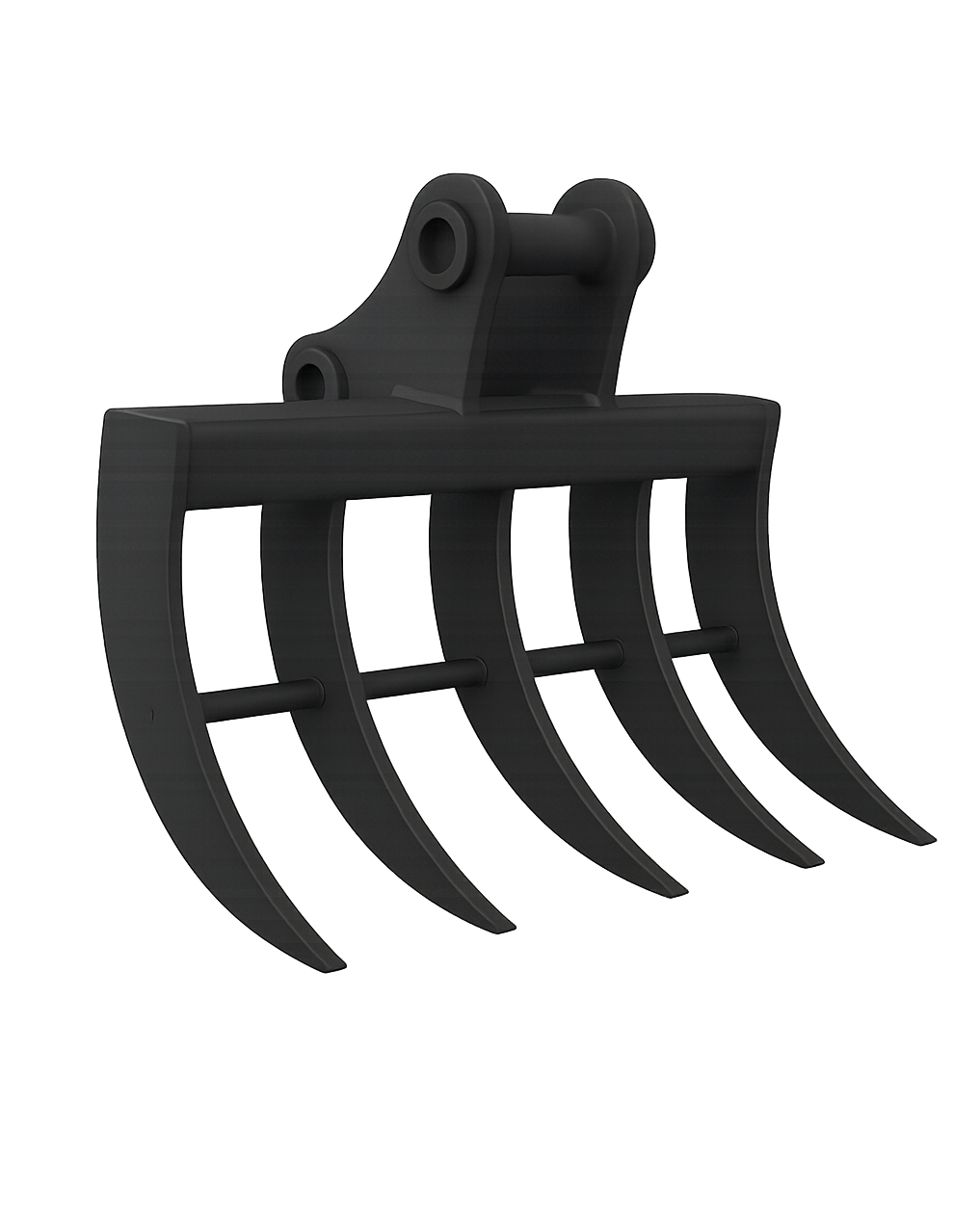

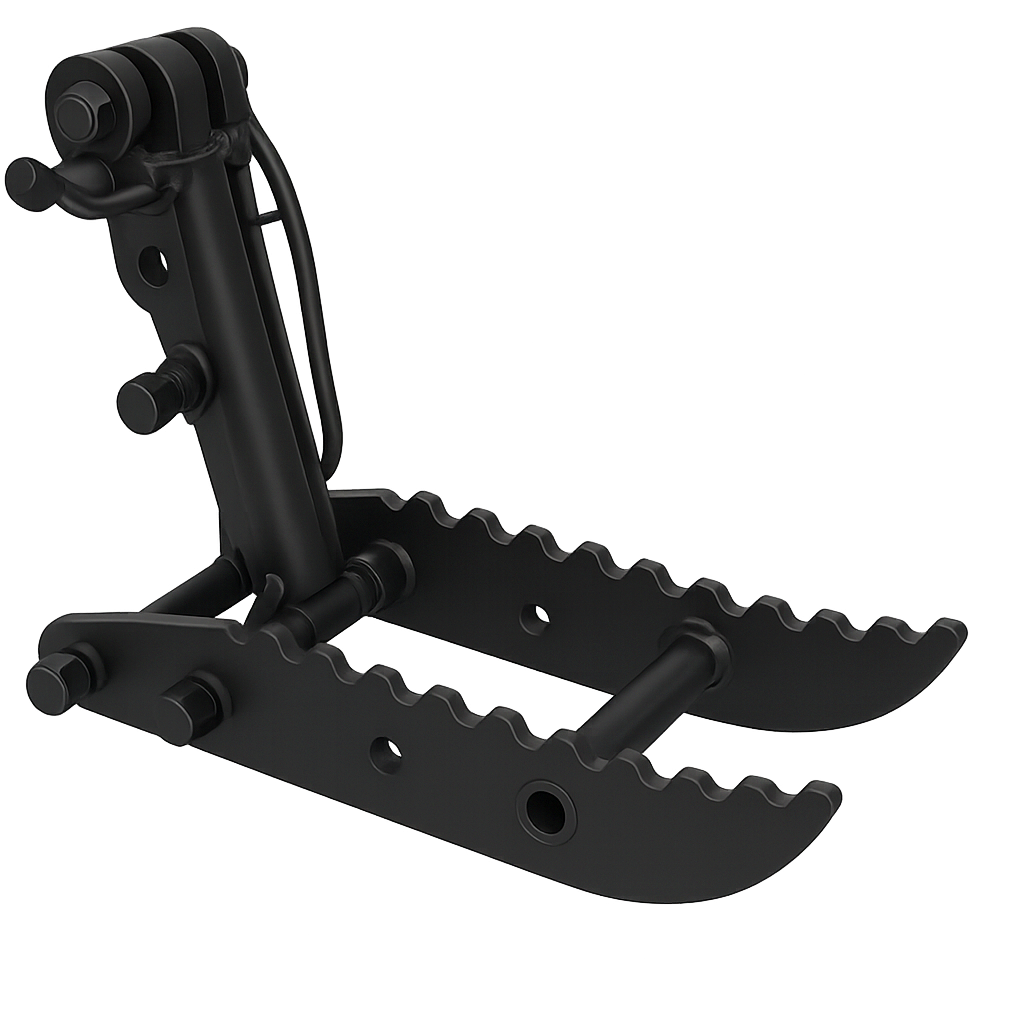

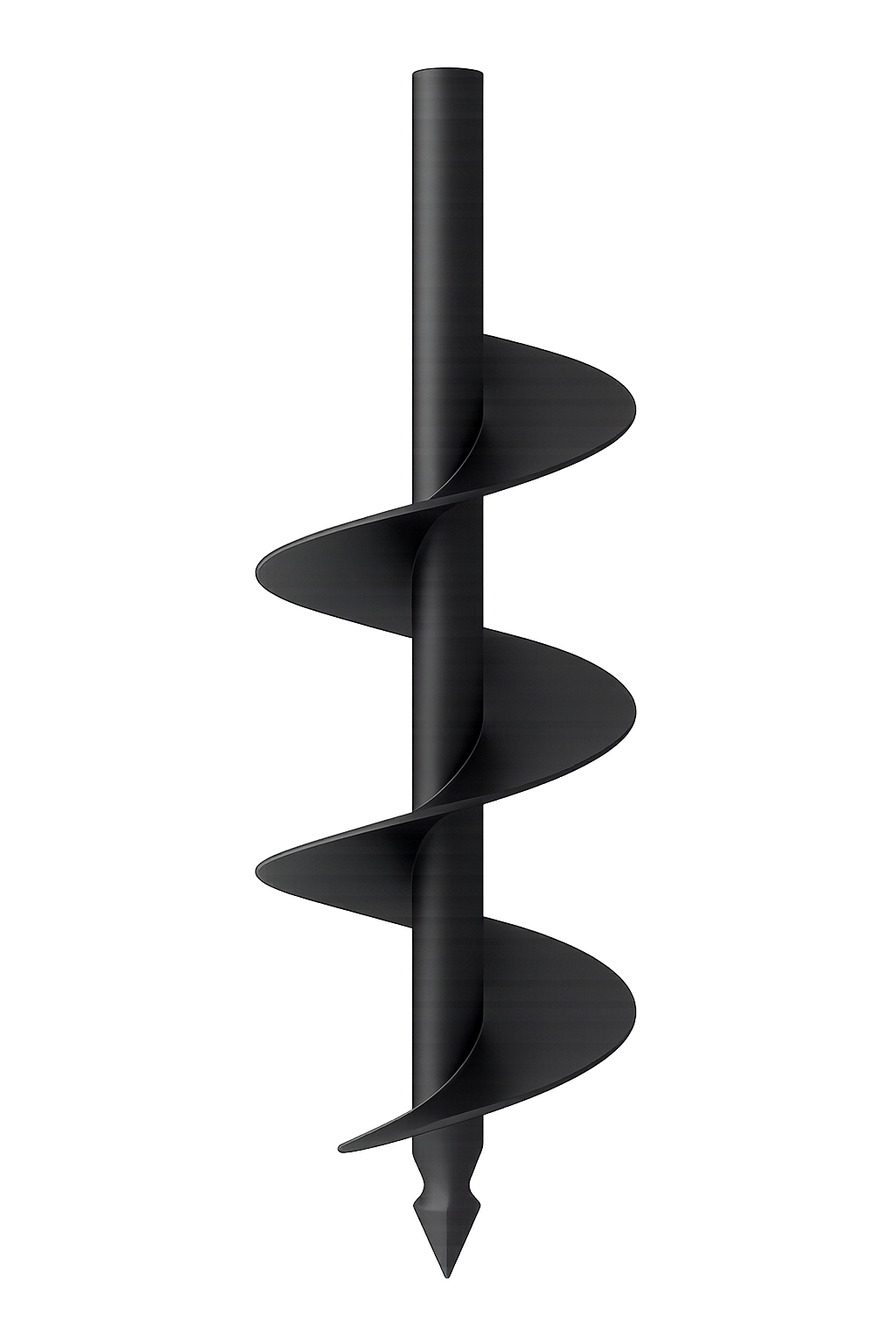

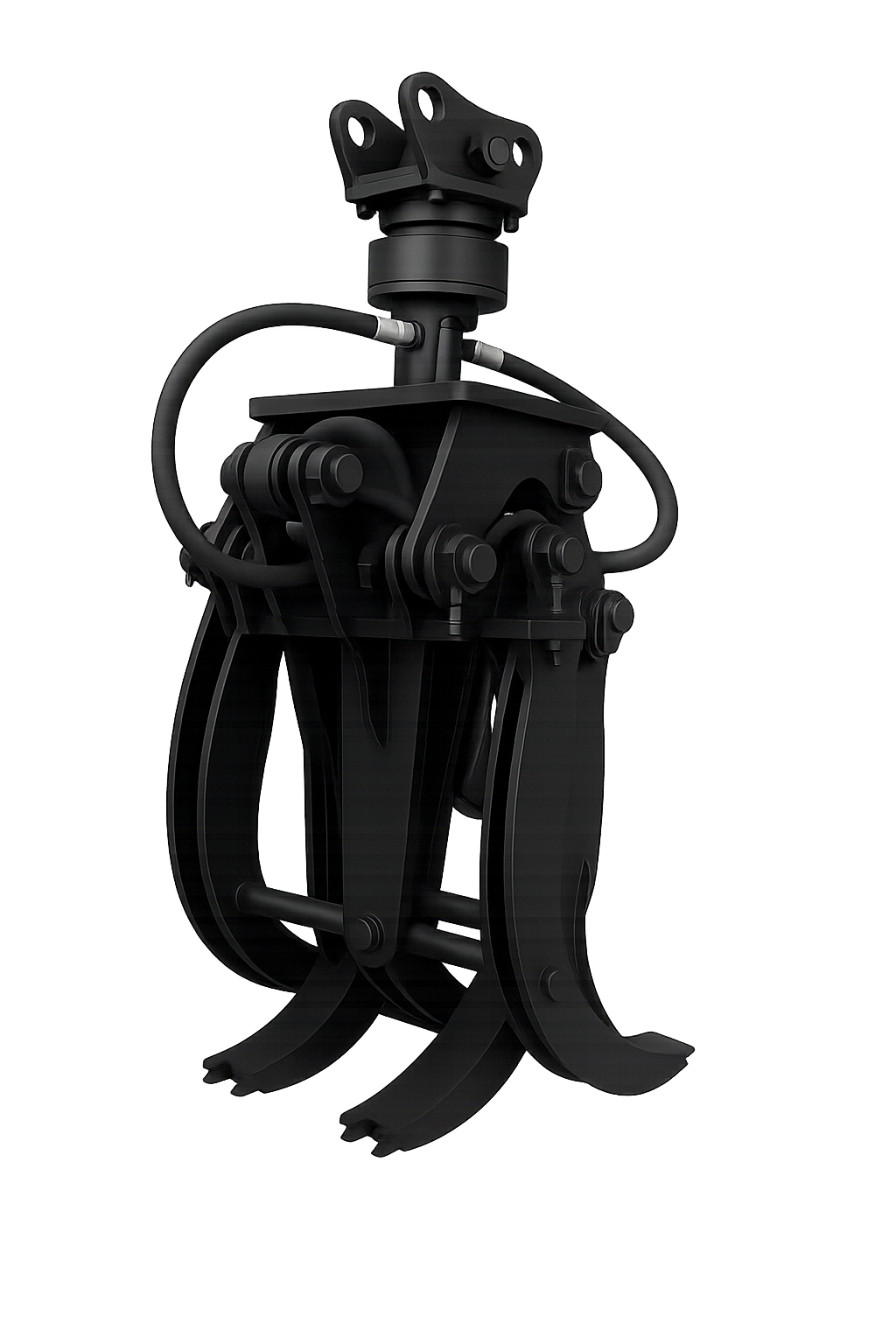

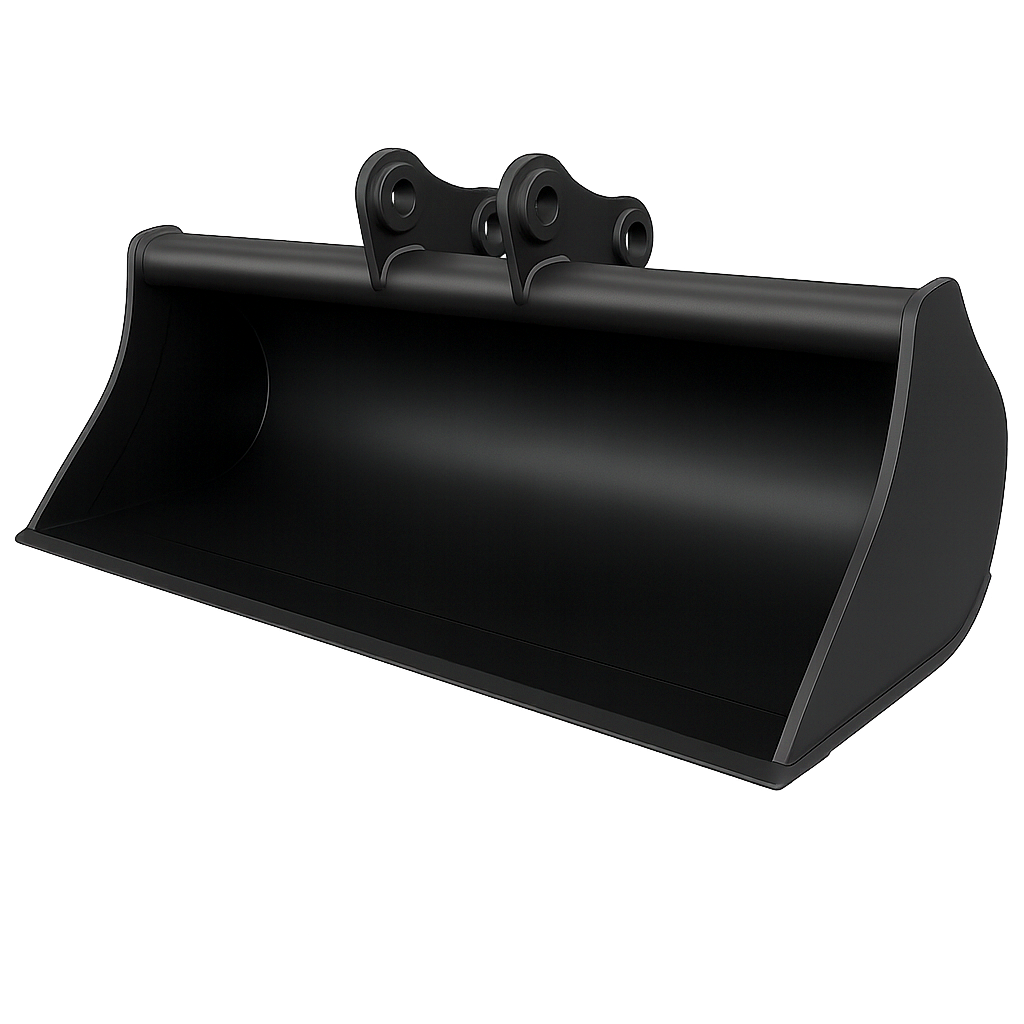

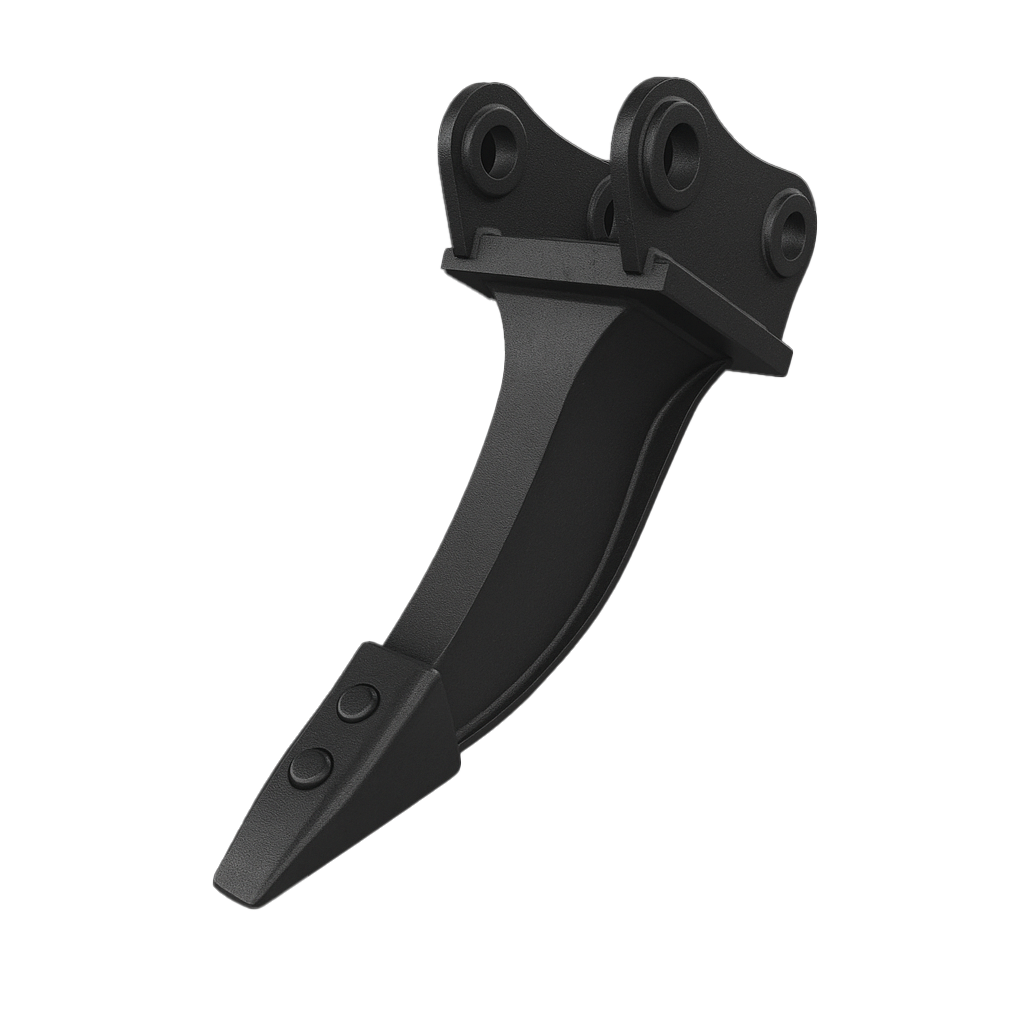

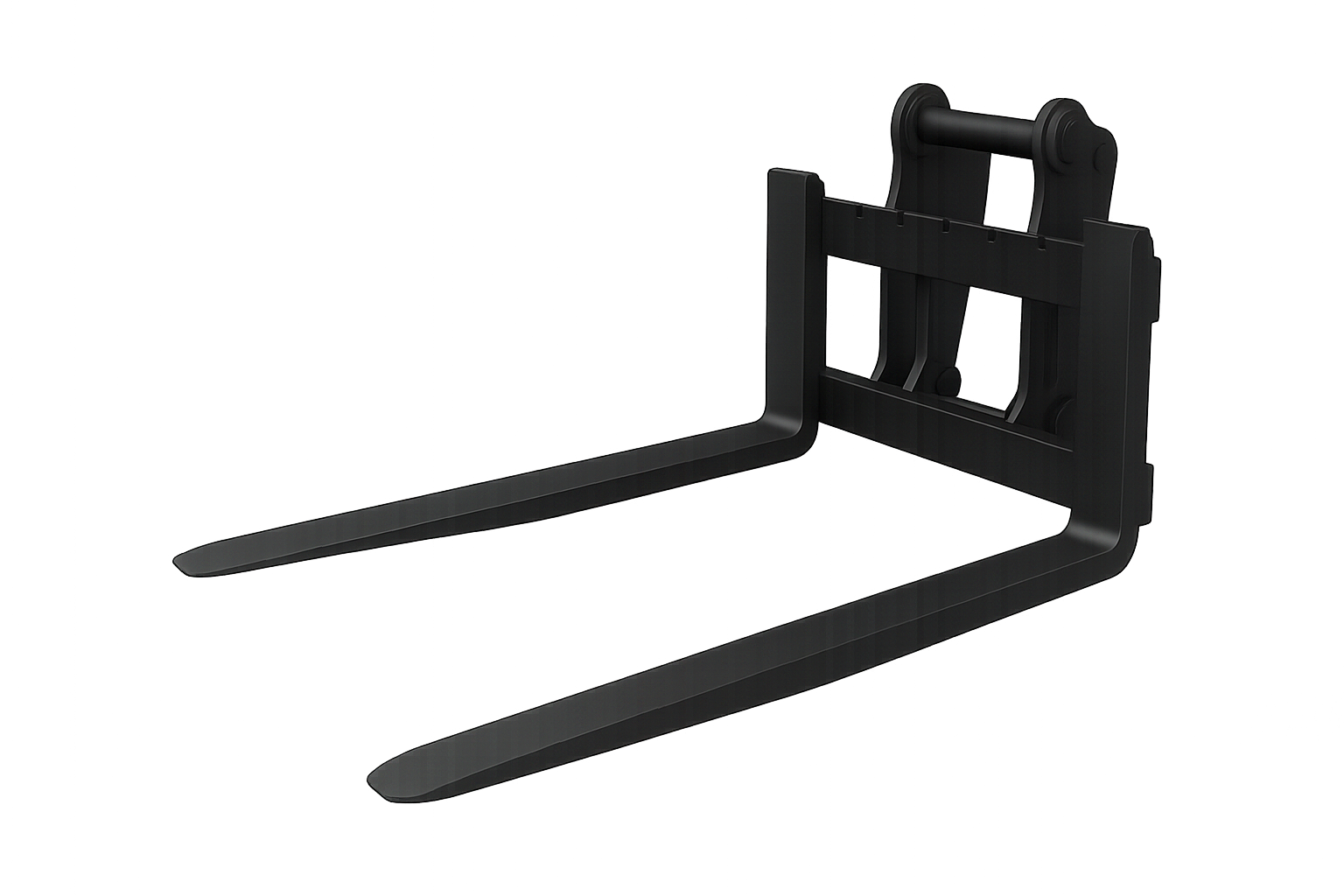

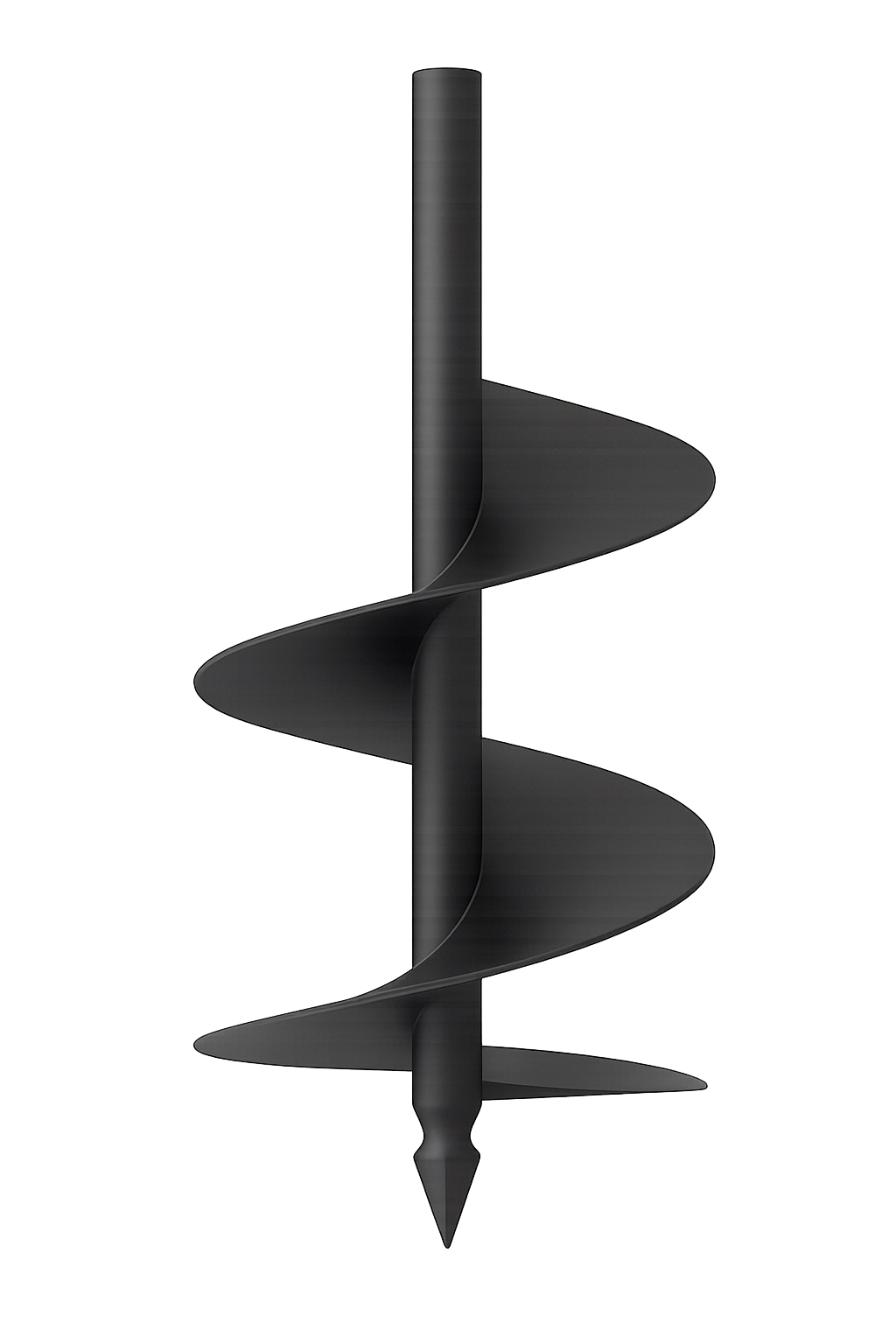

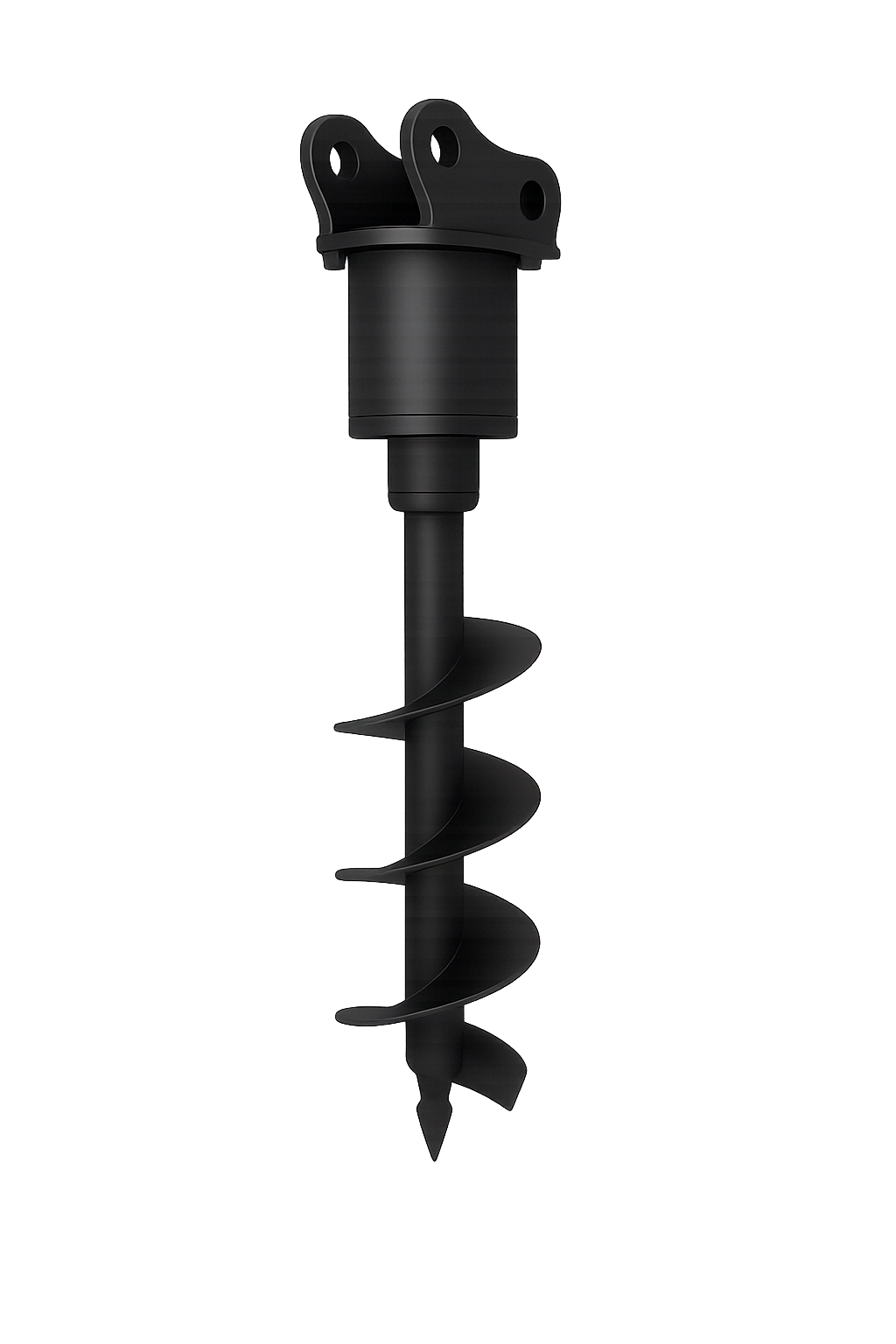

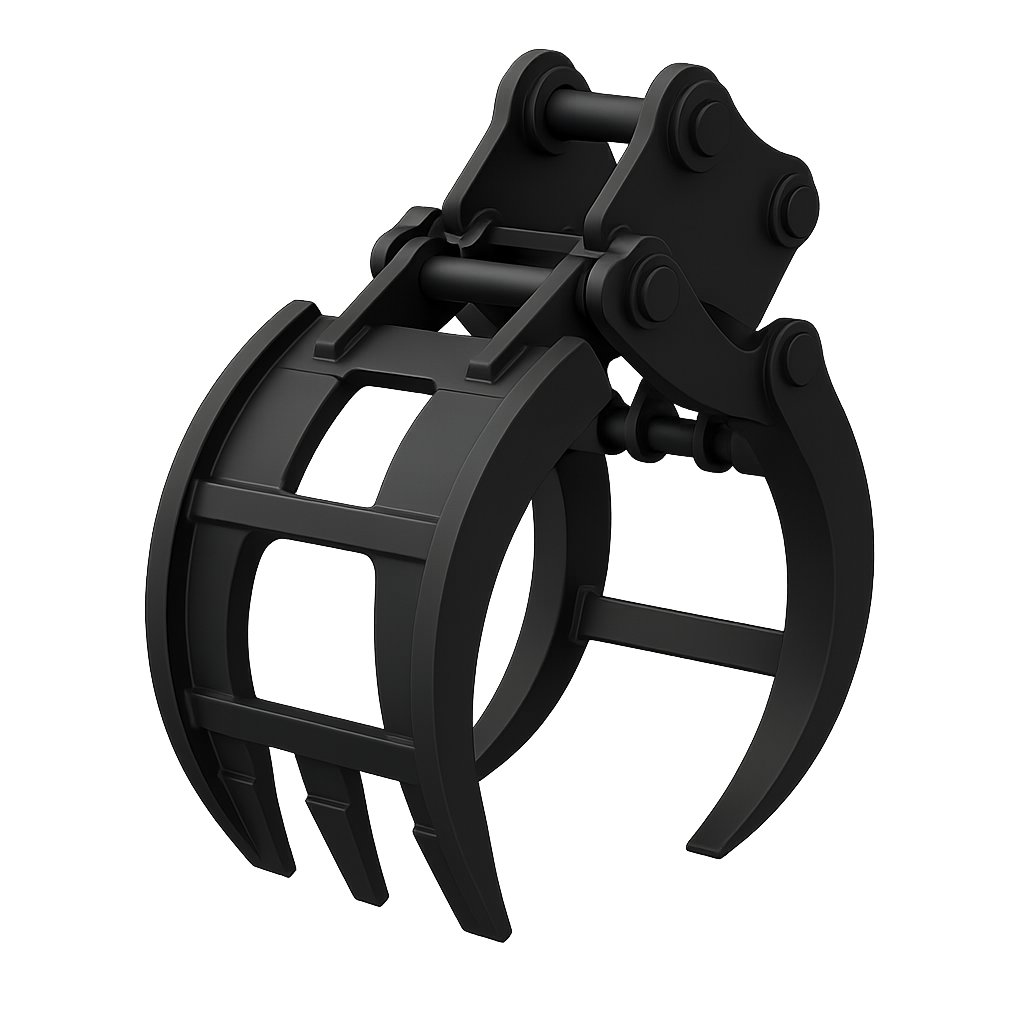

Attachments
Business-use Financing Available
Sea Lion Electric Equipment is glad to partner with Lease Link for all your financing needs.
*Plus applicable taxes. OAC.
